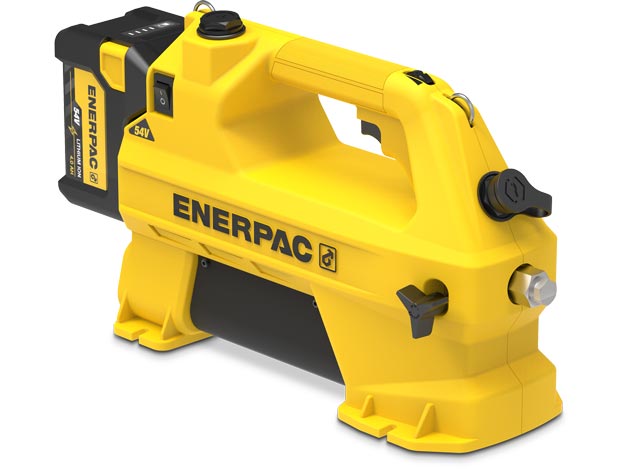

SC1201ME, Cordless Hydraulic Pump, 3/2 Valve, 61 in3 Usable Oil, Batteries and Charger Included, 230V, Europe là Cordless Pump – Battery của Enerpac, model/mã hàng SC1201ME. Sản phẩm được TONGIA CORP chuẩn hóa thông tin để khách hàng dễ đối chiếu model, thông số kỹ thuật, phạm vi ứng dụng và lựa chọn cấu hình phù hợp.
Nội dung này cung cấp thông tin cho nhu cầu tìm kiếm SC1201ME Cordless Pump – Battery, bao gồm mô tả chi tiết, mã hàng, đặc điểm kỹ thuật và hướng dẫn lựa chọn sản phẩm.
Model / Mã hàng sản phẩm
| Tên sản phẩm | SC1201ME, Cordless Hydraulic Pump, 3/2 Valve, 61 in3 Usable Oil, Batteries and Charger Included, 230V, Europe |
|---|---|
| Model / Mã hàng | SC1201ME |
| Thương hiệu / Nhà sản xuất | Enerpac |
| Dòng sản phẩm | Industrial Tools |
| Loại sản phẩm | Cordless Pump – Battery |
| Nhóm sản phẩm | Bơm thủy lực dùng pin |
Mô tả chi tiết sản phẩm
SC1201ME, Cordless Hydraulic Pump, 3/2 Valve, 61 in3 Usable Oil, Batteries and Charger Included, 230V, Europe là mã hàng thuộc nhóm Industrial Tools của Enerpac.
Compact, fast, precise, and with an extended battery runtime The new SC-Series Cordless Battery Pump is compact, lightweight, and precise. It gives hydraulic tool users the power to do so much more in confined areas – free from extension cords, air hoses, and actuating manual pumps. As the first pump to feature the new Enerpac 54 Volt battery platform, the SC-Series Pump heralds a new era of exceptional runtimes, productive speeds, and precision control – all packed into a compact and portable design. Compact and highly portable This isn’t just an alternative to manual pumps; the SC also excels at jobs normally handled by small electric and air hydraulic pumps. With a weight of just 20.2 lbs (9.2kg), it can be easily carried over long distances and up to high working areas. The new pump has similar dimensions to most hand pumps but needs less height clearance to actuate. This can be helpful in confined spaces – especially when there’s little space for the other tools, materials and items needed to get the job done. Extended battery runtime keeps you productive Until now, limited battery run times forced operators to use alternative types of pumps, or to carry several batteries to each job – especially on bigger and higher cycle jobs. The SC pump uses the new Enerpac 54V 4ah, high-capacity lithium-ion battery. On a single charge it can complete more than forty 1.5" (38mm) lifts with a 22-ton load on a 30-ton cylinder. It can also split 57 2" heavy hex nuts (2 splits per nut). The battery powers the high-performance brushless motor which delivers high-flow rates and twice the life of brushed motors. Delivering speed with precision The impressive speed offered by the SC pump doesn’t come at the expense of control. The thumbwheel adjustable speed control provides the precision of a hand pump, and the manual release valve offers precise retraction control. The number of undershoot or overshoot attempts to align or level objects is minimized – keeping you on time and on schedule. Versatile for multiple applications The applications possible with the new SC pump span across many different industries; including maintenance, manufacturing, construction, rail, and wind power. The portability and fingertip precision it offers are set to make this pump a sure winner for those looking to boost productivity and take on more higher cycle jobs. The New Enerpac SC-Series Hydraulic Pump Compact, lightweight design for access and use in tight workspaces. Cordless convenience eliminates extension cords, noise and emission producing generators. Ideal for lifting, alignment and other applications requiring high precision in advance and retract. High-performance brushless motor supplies high-flow rate for increased productivity and twice the life of brushed motors. 54 Volt 4 Ah Lithium-Ion Battery for extended runtimes and larger applications. Fast charge 54 Volt charger provides charge status, battery temperature out of range, and damaged battery indication. 1 liter oil capacity for a wide range of cylinders and tools. Bladder reservoir allows pump use in any position and reduces contamination. Optional heavy-duty and ergonomic pendant. Accessory shoulder strap SSTRP55 attaches to integrated steel rings for enhanced portability.
Thông số kỹ thuật
| Áp suất vận hành tối đa (bar) | 700 |
|---|---|
| Áp suất vận hành tối đa (psi) | 10,000 |
| Trọng lượng vận chuyển (kg) | 10.2965384 |
| Trọng lượng vận chuyển (lb) | 29.32 |
| Trọng lượng (kg) | 9,2 |
| Trọng lượng (lb) | 20.2 |
| Chiều dài (mm) | 464 |
| Chiều dài (in) | 18.3 |
| Chiều rộng (mm) | 150 |
| Chiều rộng (in) | 5.9 |
| Chiều cao (mm) | 256 |
| Chiều cao (in) | 10.15 |
| Dòng sản phẩm | SC |
| Nhóm sản phẩm | Industrial Tools |
| Phân loại | Cordless Pump – Battery |
| Loại sản phẩm | HydraulicPump |
| Bộ sản phẩm gồm | EBH544K,EC1F542E,SSTRP55 |
| Output Flow Rate No Load In3min | 115 |
| Maximum Operating Pressure Ranges Psi | 10,000 |
| Output Flow Rate Load Lmin | 0,20 |
| Output Flow Rate Load In3 Min | 12 |
| Maximum Flowat Rated Pressure | 12 in3/min |
| maximum Flow At Rated Pressure in3 | 12 |
| Output Flow Rate No Load Lmin | 1,9 |
| maximum Flow At Rated Pressure imperial | 12 in3/min |
| Maximum Operating Pressure Ranges Bar | 700 |
| Reservoir Capacityin3 | 73 |
| maximum Flow At Rated Pressure metric | 0,20 l/min |
| Motor Size Hp | 0.94 |
| Output Flow Rate10000 Psi In3min | 12 |
| Usable Oil Capacity In3 | 61 |
| Pump Power Source | Battery |
| maximum Flow At Rated Pressure liter | 0,20 |
| Maximum Flow Rate Rangesat Rated Pressure In3min | 0 -20 |
| Motor Size Kw | 0,70 |
Nguồn tham khảo: trang sản phẩm của nhà sản xuất.
Ứng dụng và hướng dẫn lựa chọn
Sản phẩm phù hợp cho các nhu cầu thuộc nhóm Bơm thủy lực dùng pin trong bảo trì, lắp đặt hoặc vận hành công nghiệp. Khi lựa chọn, cần đối chiếu model SC1201ME, tải làm việc, áp suất, kích thước, kiểu kết nối, môi trường vận hành và phụ kiện đi kèm theo tài liệu của nhà sản xuất.
Từ khóa sản phẩm
SC1201ME Cordless Pump – Battery, SC1201ME, Cordless Hydraulic Pump, 3/2 Valve, 61 in3 Usable Oil, Batteries and Charger Included, 230V, Europe, SC1201ME, SC1201ME Enerpac, Cordless Pump – Battery Enerpac, Bơm thủy lực dùng pin chính hãng, thông số kỹ thuật SC1201ME, báo giá SC1201ME, Enerpac, Industrial Tools
Nguồn sản phẩm
Thông tin và hình ảnh được tham khảo từ website chính thức của Enerpac: xem nguồn nhà sản xuất.
